Road Construction, Profile View



cross-section-digitizer-sml       Road             untitled

Road Cross Section Take-off Software

For Profile-view Drawings — Paper Plans.   DIGITIZER REQUIRED

 SectionWorks allows you to quickly and easily calculate:

  • Excavation quantities including cut, fill and import-export.
  • Strata cut volumes.
  • Paving material volumes and tonnage.
  • Mass diagrams showing the accumulated import/export volumes

SectionWorks for Windows is road, railway, and canal cross-section estimation software for calculationg excavation, strata cut and material quantities.

road-totals-view-sml        trench-job-totals-sml       cross-section-keyboard-sml

Simply enter elevation and paving material information from your cross-section drawings. As soon as you complete the information, your totals are displayed.

SectionWorks offers many views to display your results

The Job Roads View shows an overview of the roads that make up the job. A series of tabs gives you quick and easy access to each road. For each road, the program shows a graphic of the road centerline as well as the road excavation and pavement material quantities. It also shows the cut and fill areas of each cross-section.

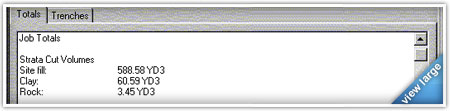

The Road Totals View gives you an overview of the current road including a centerline graphic, totals report and cross-section cut/fill list. The centerline graphic shows the existing, proposed, pavement and strata elevations at the road centerline. The report shows the cut, fill, strata cut, import/export volumes and material quantities.

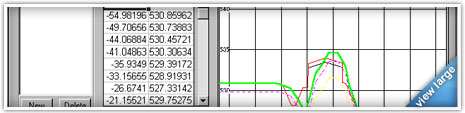

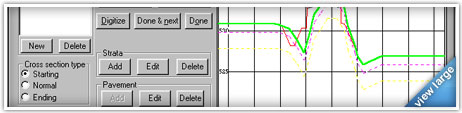

The Cross section Digitizer View allows you to digitize in the elevations, pavement location and strata for each cross-section. On-screen, digitizer and keyboard commands allow you to quickly and easily digitize all the cross-sections in a road with a minimum of keystrokes.
