Home Page » CalComp “DrawingBoard VI” Digitizers

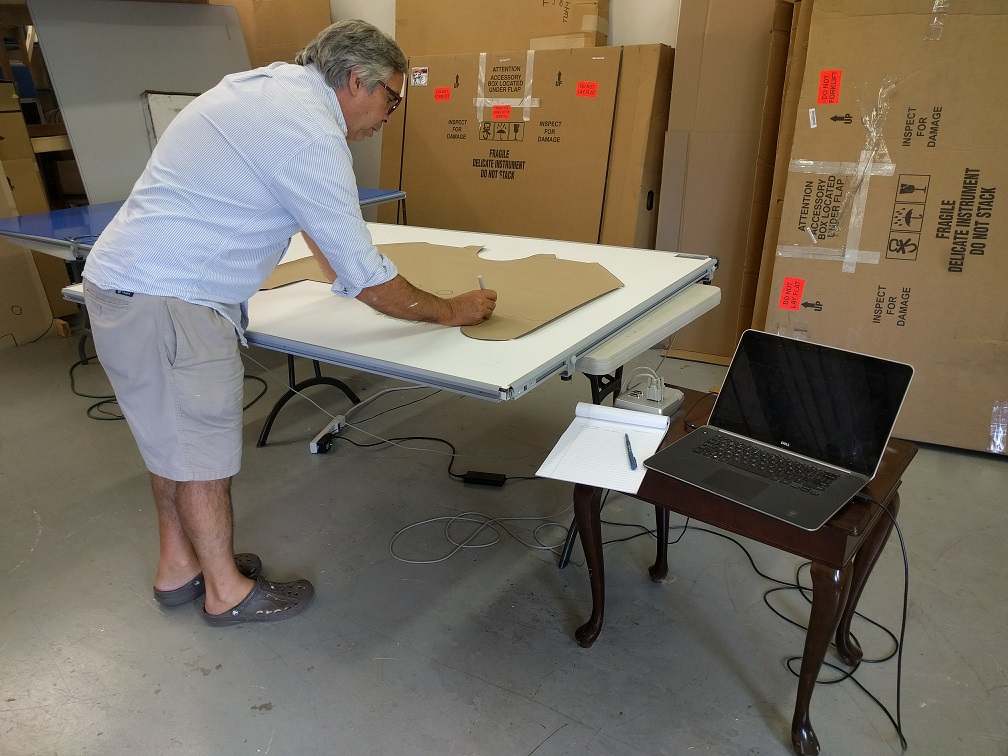

Designed for demanding CAD, GIS, engineering, textile and apparel applications, the DrawingBoard VI series is the design professional’s choice in large-format digitizers. DrawingBoard VI systems feature integrated USB and RS-232 Serial connections. When connected through a USB, no power supply is required simplifying setup and operation.

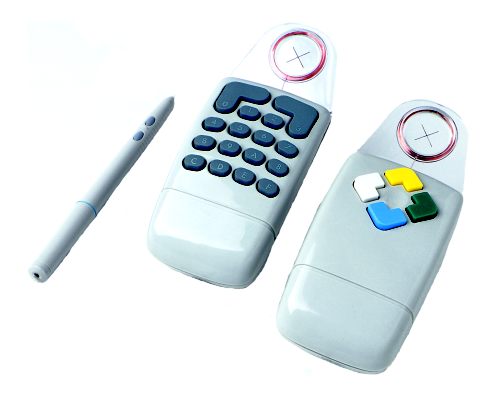

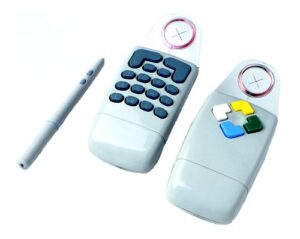

DrawingBoard VI digitizers utilizes high-performance tools engineered with a state-of-the-art positioning grid to ensure reliability, performance and quality. Multiple accuracy versions are available to match specific system requirements and an integrated mounting channel allows accessories, such as a pen tray, to be easily and quickly mounted. DrawingBoard VI digitizers work with a variety of cursors and stylus pens.

ON-LINE PURCHASE, DIGITIZER ONLY

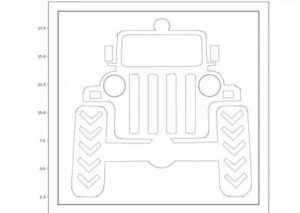

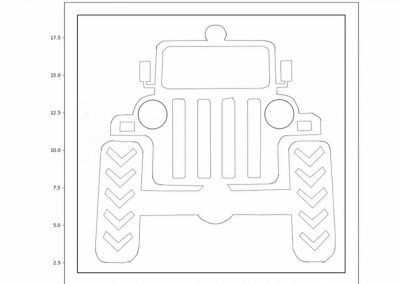

ON-LINE PURCHASE WITH “DXF FILE TRACING” FILE BUNDLE

Platform Support	PC
Software Drivers	Microsoft Windows® 7, 8 & 10
Hardware Interface	USB, RS-232 Serial (Requires optional Power Supply)
Absolute Accuracy	±0.005 in / ±0.127 mm; ±0.010 in / ±0.254 mm
Resolution	Up to 12,700 lines per inch/500 lines per mm real resolution
Repeatability	1 LSB (least significant bit)
Proximity	>0.4 in / 10.2 mm, cordless; >0.8 in / 20.3 mm, corded 0.5 in / 12.7 mm
Self-Diagnostics	Automatic testing RAM, ROM and microprocessor
Baud Rate	Up to 38,400
Data Rate	Up to 200 coordinate pairs per second
Technology	Electromagnetic
Output Formats	32 industry-standard formats
Cursor Switches	Elastomeric keypad, rated life over 1 million actuations
Emulations	CalComp 3400, GTCO T5A, Summagraphics Microgrid
Operating Modes	Point, line, run, track, incremental, prompt
Power Supply	120 V/60 Hz, 220 V/50 Hz (required for RS-232 serial connection) No supply required for USB connection
Power Requirements	5 Volts, DC, 100 mA current draw (USB) 9 Volts, DC, 200 mA current draw (with Power Supply)
Certification	UL 1950, EN60950, FCC, VCCI, CE, EN55024, EN55022, Industry Canada
Operating Temperature	41 to 115°F/5 to 46°C
Storage Temperature	0 to +150°F/-18 to +68°C
Humidity Range	10 to 95%, noncondensing
Altitude Range	0 to 10,000 ft./0 to 3,077 m
Warranty	One-year limited warranty
Included Components	– DrawingBoard VI digitizer – Corded or cordless pointing device – USB cable – Mounting brackets (except for 20 x 24) – Pen/cursor tray

Digitizer Options and Physical Dimensions

Model	Active Area	Footprint	Weight	Average Shipping Weight
DB6-2024	20 x 24 in/508 x 609.6 mm	29 x 34 in/737 x 864 mm	13 lbs./5.9 kg	31 lbs./17.7 kg
DB6-2436	24 x 36 in/609.6 x 914.4 mm	32.5 x 46 in/826 x 1,168 mm	19 lbs./8.6 kg	48 lbs./21.8 kg
DB6-3648	36 x 48 in/914.4 x 1,219.2 mm	44.5 x 60 in/1,130 x 1,524 mm	30 lbs./13.6 kg	79 lbs./35.9 kg
DB6-4460	44 x 60 in/1,117.6 x 1,524 mm	52.5 x 69 in/1,333 x 1,753 mm	40 lbs./18.2 kg	89 lbs./40.5 kg

ON-LINE PURCHASE

ON-LINE PURCHASE WITH “DXF FILE TRACING” FILE BUNDLE

Please note: For Calcomp DrawingBoard VI digitizers, all sales are final. Buyer has full responsibility to verify 100% software compatibility from software vendor prior to purchase.
